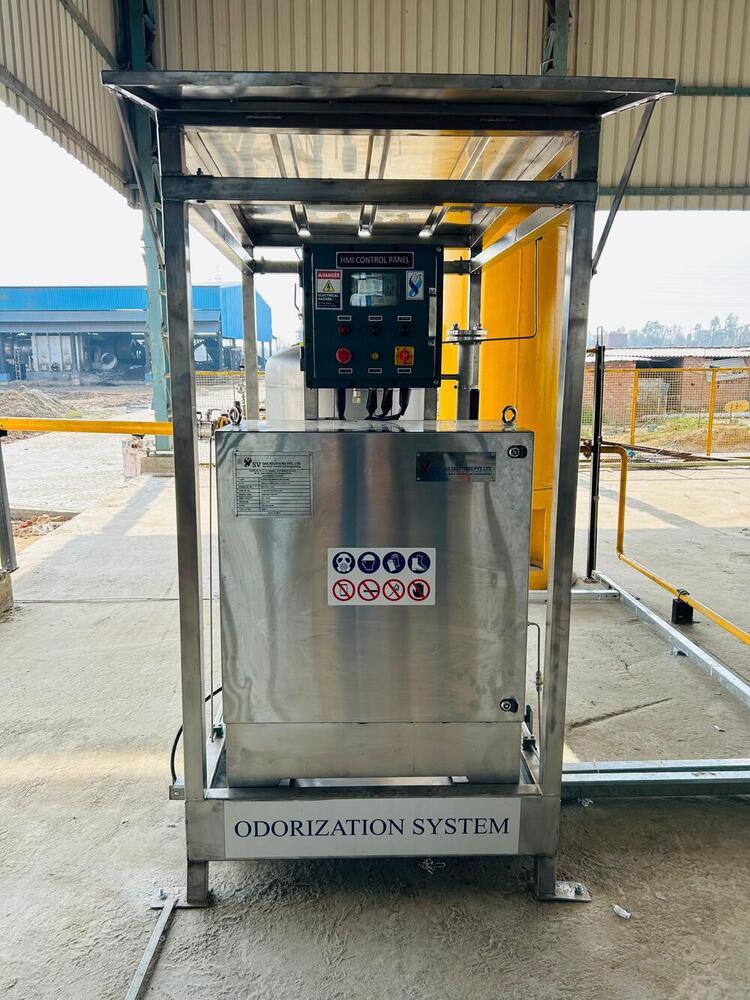

Gas Odorization System

Name: Gas Odorization System
Brand: SV GAS SOLUTIONS PRIVATE LIMITED
Price: 340000 INR
Availability: InStock

Price 340000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Gas Odorization System Specification

Product Type
Gas Odorizing System

General Use
Gas Odorization

Material
Stainless Steel

Automatic
Yes

Voltage
240V Volt (v)

Feature
High Performance, Low Maintenance Cost, Low Noise, Lower Energy Consumption, High Efficiency

Color
SS 304

Gas Odorization System Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7-10 Days

About Gas Odorization System

SV GAS SOLUTIONS PVT LTD

TECHNICAL SPECIFICATION FOR LPG ODORIZATION SKID

OPERATOION CONDITION

Max. Gas Odorant Injection

(2.3 lt/h) for each pneumatic pump

No of Streams

Single with two pumps ( 1 working + 1 stansby)

Pump actuating pressure

2 bar

Working Temperature

-15C to +60C

Automatic Mode / Manual mode

Flow Data signal (pulse or 4-20mA) from flow meter

Gas Odorant

ODORIZATION SYSTEM DESCRIPTION

SS316 Pnuematic Pump

Two Pumps Pneumatically operated Positive Displacement : 1 working + 1 stansby

SS 304 Tank

500 Lit

Pump Panel

IP-65

Electronic Control Panel

Siemens PLC-HMI (Hazardous area- Zone 1) ATEX

Control Panel

Ex Proof ATEX

Modbus TCP - For system standart control;

RS 485 connection

Protection class

IP 65 (Min) / NEMA4

Display

Siemens HMI

According to NG Flow Data

Pulse or 4-20mA- from the NG Flow Computer

Regulator

Two number High Pressure

Selonoid valves

Ex proof ATEX

SS 304 Filter

For odorant line

Flow Transmeter Measurment device

Verometer- ATEX

ODORIZATION TANK

500 ltr Horizontal Storage Tank.

According to ASME SEC VIII DIV 1. Warning & safety Instructions.

SS 304- Magnetic Level Gauge

For visual level measurement

Level transmitter

Level Transmitter with gauge / level Switch and SS flame arresters

CALIBRATION COLUMN

Inbuilt Glass calibration column

Pump stroke calibration and flow transmeter (verometer) calibration

SPILL PAN

SS304 Spill pan Material

Capacity 110%, odorant storage tank, pump cabinet on the spill pan

SOLAR PANEL OPTIONAL

Solar will be the primary power and secondry power shall be electrical.
